BIG HITS AND ALL-OUT DESCENTS. THIS TRAIL-CRUSHING ENDURO MACHINE DELIVERS CONFIDENCE AND CONTROL FOR THE ROWDIEST TERRAIN. ITS MIXED WHEEL SIZE, WITH A 29-INCH FRONT AND 27.5-INCH REAR, BLENDS STABILITY AND SPEED WITH AGILITY THAT POPS.
KEY PERFORMANCE FACTORS

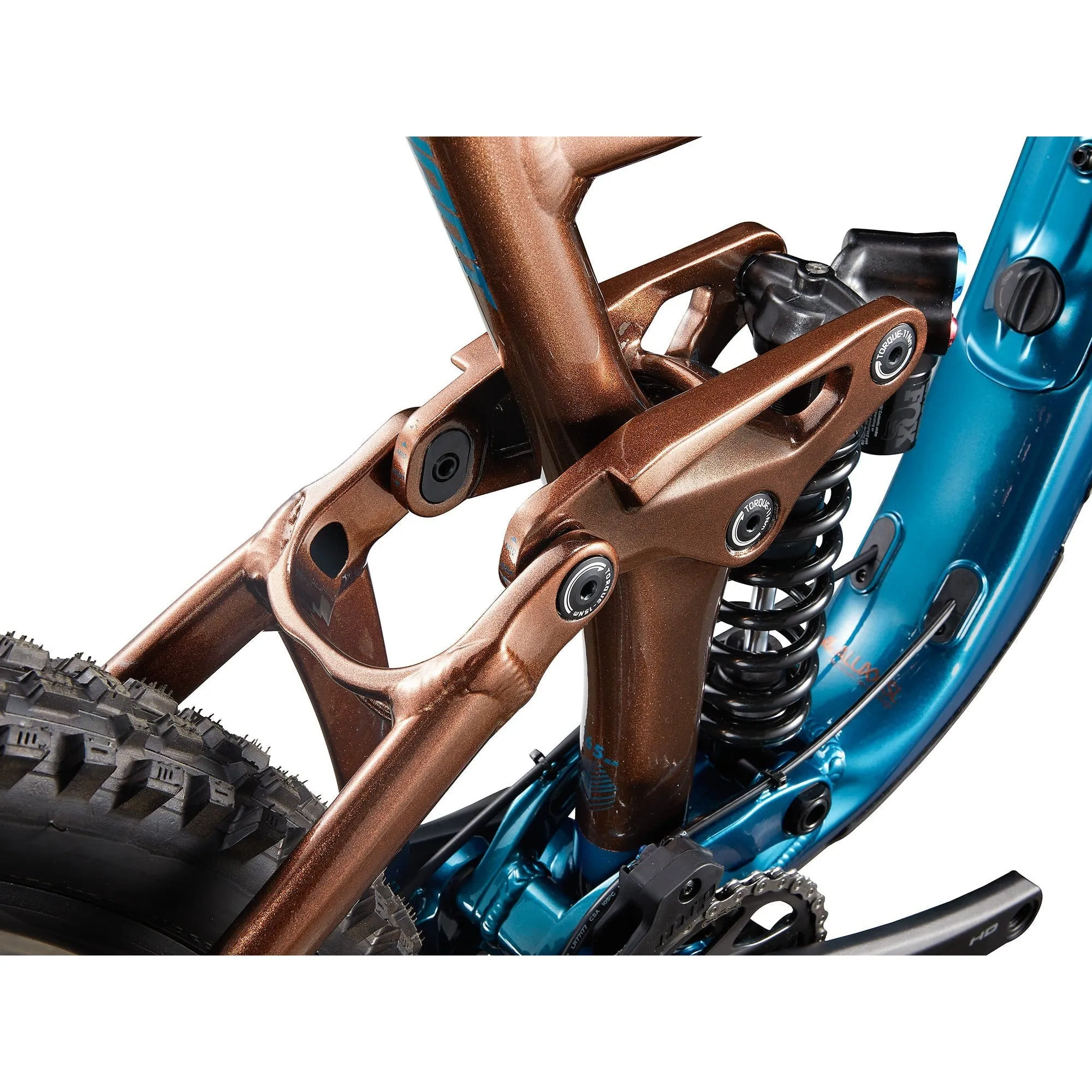

Race-bred suspensionThe Maestro rear suspension eats up enduro terrain with 165mm of smooth, active rear travel matched with a 190mm travel fork. The trunnion mount rear shock has a longer stroke (65mm over 60mm on the previous generation) while the Advanced Forged Composite upper rocker arm adds stiffness and lowers overall frame weight.
Adjustable enduro geometry
New flip chip feature lets you adjust frame geometry depending on the terrain. You can select a 63.1 or 63.5-degree head angle and corresponding 77.9 or 78.3-degree seat tube angle, resulting in a 25 or 19mm bottom bracket drop (size medium) to fine-tune handling for varying trail conditions and riding style.
Mixed wheel size
A 29-inch front wheel provides speed, stability and front-end control on rough, technical trails. A 27.5-inch rear wheel adds agility and maneuverability to help riders rail corners, pop over features and show off their style.
| Sizes | M, L, XL |
| Colors | Sea Sparkle/Hematite |
| Frame | ALUXX SL-Grade Aluminium front and rear triangles, 165mm Maestro suspension, flip chip 2 position, 12x148mm thru-axle, only 27.5 wheel compatible, integrated downtube storage, 55mm Chainline |
| Fork | Fox 40 Performance, GRIP damper, 190mm, 20x110, custom tuned for Giant |
| Shock | Fox DHX2 Performance Elite, custom tuned for Giant S:400#, M:400#, L:450#, XL:500# |
| Handlebar | Giant Contact SL TR35, alloy, 35mm |
| Stem | TruVativ Descendant Direct Mount 35, 50mm |
| Seatpost | Giant Contact, 30.9mm, 400mm |
| Saddle | Giant Romero |
| Pedals | N/A |
| Shifters | Shimano CUES SL-6000-10R, 1x10 |
| Front Derailleur | N/A |
| Rear Derailleur | Shimano CUES RD-U6000, Shadow |
| Brakes | SRAM Code R, hydraulic, CenterLine rotors [F]220mm, [R]203mm |
| Brake Levers | SRAM Code R |
| Cassette | Shimano CUES LG-300, 11x48 |
| Chain | Shimano CUES LG500 |
| Crankset | Praxis Cadet HD M24, 32t, 165mm, 55mm chainline |
| Bottom Bracket | Praxis, press fit |
| Rims | Giant AM 29, alloy 29"[F], 27.5" [R] |
| Hubs | F] Giant MTB alloy, 6-bolt [R] Giant MTB alloy, 3-pawl driver, 6-bolt |
| Spokes | Sapim |
| Tires | [F] Maxxis Assegai 29x2.5 WT, 3C MaxxTerra, EXO , TR [R] Maxxis Assegai 27.5x2.5 WT, 3C MaxxTerra, DD, TR tubeless |
| Extras | Tubeless prepared, 2.5" max tyre size, 36t max chainring size, MRP AMG CS chain guide |
